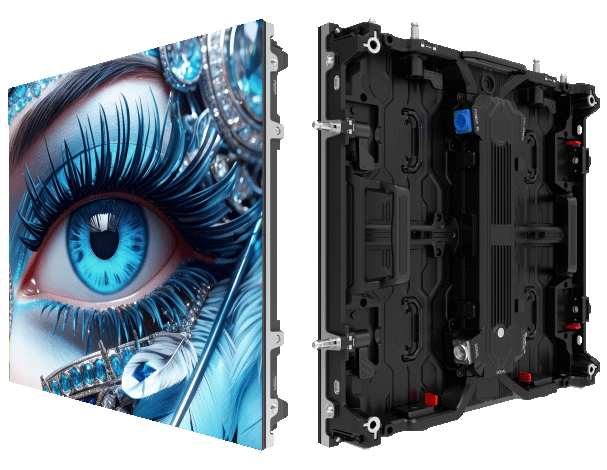

The problem: moiré in rental LED workflows
Moiré shows up when camera sensors and fine-pitch modules clash — a common headache for broadcasters and rental houses sending walls to live events. Early on in the build process a display can look fine in person but flicker or pattern on broadcast feeds. For rental fleets that shift between arenas and outdoor stages, this becomes a repeat cost center. Alongside outdoor deployments like a prominent fixed outdoor display, rental crews increasingly need tight control over refresh rate and electronic calibration so the same panel behaves on-camera the way it does on-site.
Why high-refresh IC calibration matters
High-refresh IC calibration reduces aliasing between the panel’s scan timing and camera frame capture. Simple: if the IC timing, PWM strategy, or scan rate sits near common camera frame rates, the sensor will sample a transient pattern and produce visible moiré. Proper calibration tunes refresh rate and phase so that the panel presents steady luminance to the camera. Terms to know here: refresh rate, IC calibration, and pixel pitch. These are the knobs you actually turn during factory setup.
Step-by-step calibration checklist for factories
Start with measuring. Use a colorimeter and a camera that matches your rental customers’ specs to log banding or beat patterns across refresh rates. Next, lock IC timing to a range outside popular camera frame rates (48–60 Hz multiples) and verify stability across brightness levels. Then tune PWM and phase to minimize temporal modulation at low grayscale — this is where moiré often becomes visible. Finally, run a looped camera test while adjusting color temperature and gamma; store IC presets per pixel pitch so your assembly line applies them consistently.
Common mistakes that keep moiré alive
Factories often skip real-camera tests and rely on lab monitors. That saves time but adds risk — the wall will pass quality control yet fail on broadcast. Another mistake: a one-size-fits-all refresh setting across pixel pitches. Smaller pixel pitch needs tighter phase control. Also avoid over-reliance on sheer refresh rate — a higher number without phase alignment can still produce artifacts.
Real-world anchor: what trade shows taught us
At recent industry shows like CES and ISE, indoor demos highlighted how fine-pitch walls can look flawless in person yet degrade under broadcast. Engineers there used targeted IC presets and camera-synchronized testing to eliminate patterns before shipping. That hands-on verification is a good template for rental factories building indoor led display units that will be used in mixed-camera environments.
Implementation tips from the shop floor
Practical fixes are low-tech and repeatable. Keep a library of calibration profiles per module SKU. Automate profile application during AOI and burn-in. Train technicians to interpret camera logs — they rarely need complex analysis, just pattern recognition. And when a venue has unique lighting, store a temporary profile for that customer so the fleet can be returned to baseline quickly — small operational changes yield big broadcast improvements.
Three golden rules for choosing the right strategy
1) Measure with the camera you will broadcast through. Hardware validation beats simulation every time. 2) Treat IC timing, PWM, and phase as a single system variable — adjust them together, not in isolation. 3) Build repeatable presets keyed to pixel pitch and scan architecture; enforce them during module assembly so on-site configuration is minimal.
These rules let factories cut troubleshooting time, reduce rework, and deliver rental walls that behave predictably for broadcasters — measurable wins you can count in fewer site visits and cleaner feeds.
